SJ-HVF MRL SJ-HVW MR
Products Load :2000~5000 KG 2000~5000KG
Speed: 0.5~1.0 m/s 0.5~1.5 m/s
Bottom support type Top suspended type
Traction machine: Permanent magnet synchronous gearless traction machine
Operation panel: Integrated double-32-bit-microcomputer control
Door operator: Permanent magnet variable frequency door operator
Door protector: Light curtain
Traction ratio: Load capacity
4:1 2~6T
6:1 7~10T
8:1 12~20T
Standard decoration:
Ceiling : Spray coating steel plate
Car door/Back/Side/Front Walls : Spray coating steel plate
Floor： Aluminum alloy/bent steel plate/cast iron
Recommended application scenarios:
Shopping malls, factories.
Q1: Are Service Elevators and Cargo Elevators the same thing?
A: No, service elevators and cargo (freight) elevators are not the same thing.
Under the ASME A17.1-2019 safety code, a service elevator is legally classified as a modified passenger elevator designed to carry both pedestrians and light freight, whereas a freight elevator is a distinct, heavy-duty industrial class engineered with separate structural and power specifications to handle massive loads up to 100,000 lbs.
Q2: Does SURAPID provide hydraulic freight elevators?
A：No, we only offer traction freight elevators, available in two types: top-hung and bottom-supported, to meet customers' varying load capacity and building construction requirements.
Q3: Are SURAPID freight elevators compliant with international standards like EN81 or ASME?
A:Yes. SURAPID elevators are manufactured under strict quality control systems. Our freight elevators can be customized to comply with EN81 (European Standards) and relevant regional lift codes, ensuring safe and legal operation in global markets.
Main specifications and technical parameters
2000KG Machine room Cargo Elevator
Support Reaction Force (KN)
| R1 | R2 | R3 | R4 | RR |
| 100 | 60 | 188 | 148 | 75.5 |
Technical Parameters
| Load | Speed | Minimum Floor Spacing | Main Motor Power | Rated Current | Maximum Current | Power Supply | Lighting and signal Power Supply |
| 2000 KG | 0.5 m/s | OPH+650 mm | 6.1 KW | 14 A | 28 A | 380V 3-Phase five-wire 50HZ | 220V 50HZ |
Support Reaction Force (KN)
| R1 | R2 | R3 | R4 | RR |
| 188 | 148 | 126 | 126 | 75.5 |
Technical Parameters
| Load | Speed | Minimum Floor Spacing | Main Motor Power | Rated Current | Maximum Current | Power Supply | Lighting and signal Power Supply |
| 2000 KG | 1 m/s | OPH+650 mm | 12.3 KW | 28.3 A | 56.6 A | 380V 3-Phase five-wire 50HZ | 220V 50HZ |
| 2000 KG | 1.5 m/s | OPH+650 mm | 18.4 KW | 42.3 A | 84.6 A | 380V 3-Phase five-wire 50HZ | 220V 50HZ |
5000KG Machine room Cargo Elevator
Support Reaction Force (KN)
| R1 | R2 | R3 | R4 | RR |
| 122 | 186 | 180.7 | 86 | 96.5 |
Technical Parameters
| Load | Speed | Minimum Floor Spacing | Main Motor Power | Rated Current | Maximum Current | Power Supply | Lighting and signal Power Supply |
| 5000 KG | 0.5 m/s | OPH+650 mm | 15 KW | 34.5 A | 69 A | 380V 3-Phase five-wire 50HZ | 220V 50HZ |
Support Reaction Force (KN)
| R1 | R2 | R3 | R4 | RR |
| 188 | 148 | 126 | 126 | 75.5 |
Technical Parameters
| Load | Speed | Minimum Floor Spacing | Main Motor Power | Rated Current | Maximum Current | Power Supply | Lighting and signal Power Supply |
| 5000 KG | 1.0 m/s | OPH+650 mm | 33.4 KW | 73 A | 146 A | 380V 3-Phase five-wire 50HZ | 220V 50HZ |
| 5000 KG | 1.5 m/s | OPH+650 mm | 49.1 KW | 106 A | 212 A | 380V 3-Phase five-wire 50HZ | 220V 50HZ |
2000KG Machine Room Less Cargo Elevator
Support Reaction Force (KN)
| R1 | R2 | R3 | R4 | RR |
| 100 | 60 | 188 | 148 | 75.5 |
Technical Parameters
| Load | Speed | Minimum Floor Spacing | Main Motor Power | Rated Current | Maximum Current | Power Supply | Lighting and signal Power Supply |
| 2000 KG | 0.5 m/s | OPH+650 mm | 6.1 KW | 14 A | 28 A | 380V 3-Phase five-wire 50HZ | 220V 50HZ |
Support Reaction Force (KN)
| R1 | R2 | R3 | R4 | RR |
| 188 | 148 | 126 | 126 | 75.5 |
Technical Parameters
| Load | Speed | Minimum Floor Spacing | Main Motor Power | Rated Current | Maximum Current | Power Supply | Lighting and signal Power Supply |
| 2000 KG | 1 m/s | OPH+650 mm | 12.3 KW | 28.3 A | 56.6 A | 380V 3-Phase five-wire 50HZ | 220V 50HZ |
3000KG Machine Room Less Cargo Elevator
Support Reaction Force (KN)
| R1 | R2 | R3 | R4 | R5 | R6 | RR |
| 173 | 188 | 93 | 93 | 150 | 180 | 124 |
Technical Parameters
| Load | Speed | Minimum Floor Spacing | Main Motor Power | Rated Current | Maximum Current | Power Supply | Lighting and signal Power Supply |
| 3000 KG | 0.5 m/s | OPH+650 mm | 9.7 KW | 22 A | 44 A | 380V 3-Phase five-wire 50HZ | 220V 50HZ |
| 3000 KG | 1 m/s | OPH+650 mm | 19.4 KW | 43.5 A | 43.5 A | 380V 3-Phase five-wire 50HZ | 220V 50HZ |
5000KG Machine Room Less Cargo Elevator
Support Reaction Force (KN)
| R1 | R2 | R3 | R4 | R5 | R6 |
| 210 | 213 | 86 | 86 | 259 | 259 |
Technical Parameters
| Load | Speed | Minimum Floor Spacing | Main Motor Power | Rated Current | Maximum Current | Power Supply | Lighting and signal Power Supply |
| 5000 KG | 0.5 m/s | OPH+650 mm | 15 KW | 34.5 A | 69 A | 380V 3-Phase five-wire 50HZ | 220V 50HZ |
| 5000 KG | 1 m/s | OPH+650 mm | 33.4 KW | 73 A | 146 A | 380V 3-Phase five-wire 50HZ | 220V 50HZ |

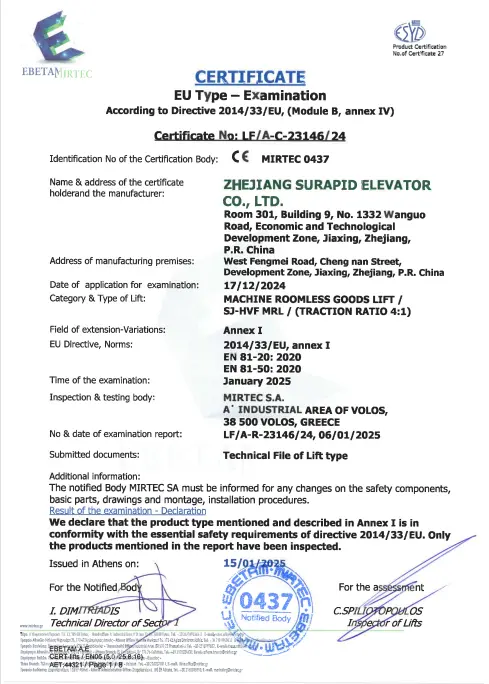

CE certification:

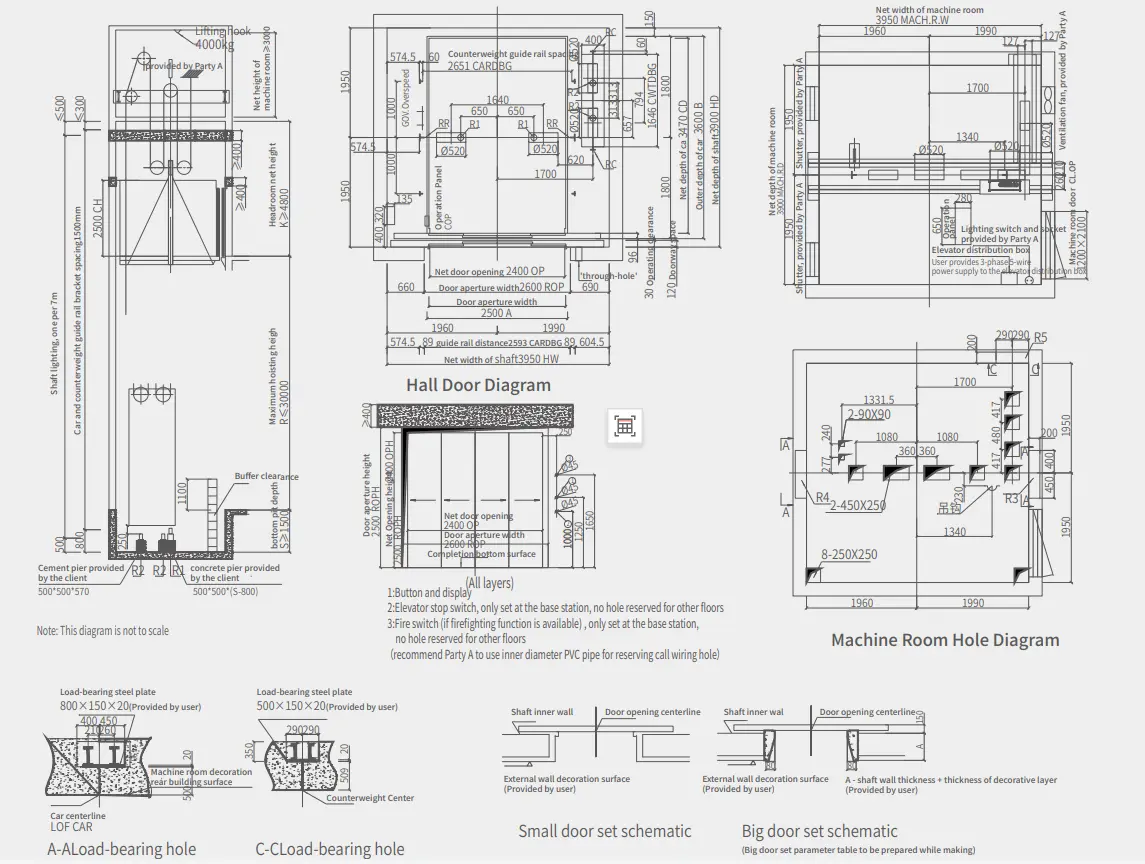

Cargo Elevator civil drawing reference ( More details please refer to our civil drawing manaual )
• Standard absolute position (2~5T) :Replacing the position switch allows for easier intergration of the UCMP function,achieving a safety level of SIL3.
• Standard door opening delay button:Fully considering the demands of various usage scenarios,minimizes potential hazards such as door collisions.
•A bi-fold door system maximizes opening width, while a safety light curtain protects entry points to ensure secure movement of goods and people.

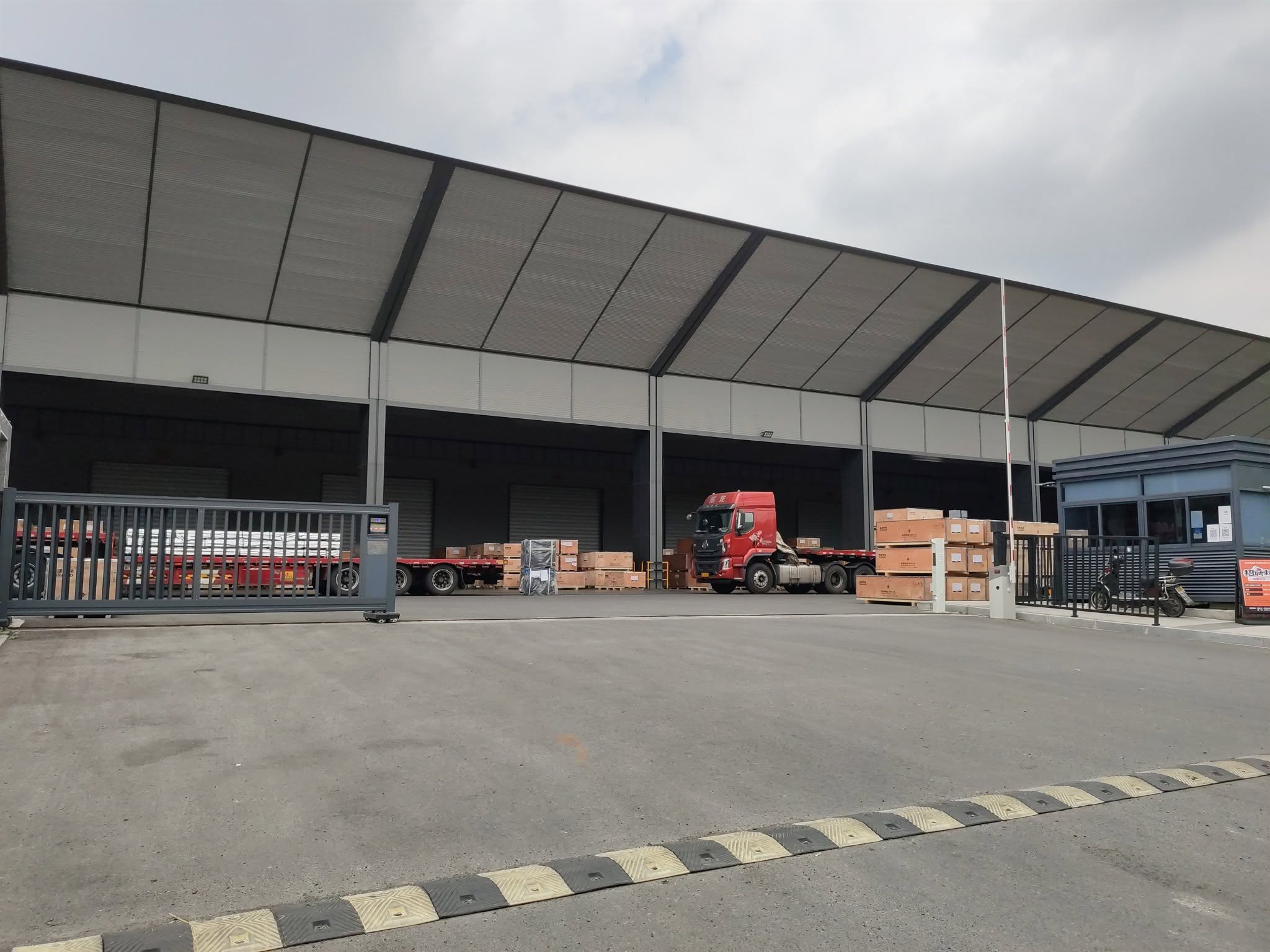

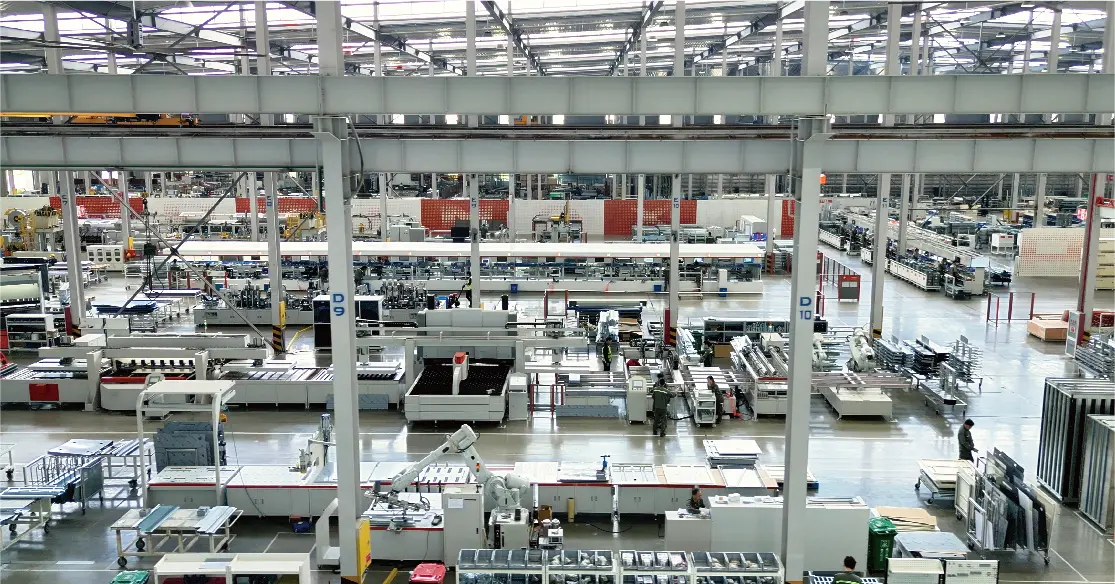

Factory Photos

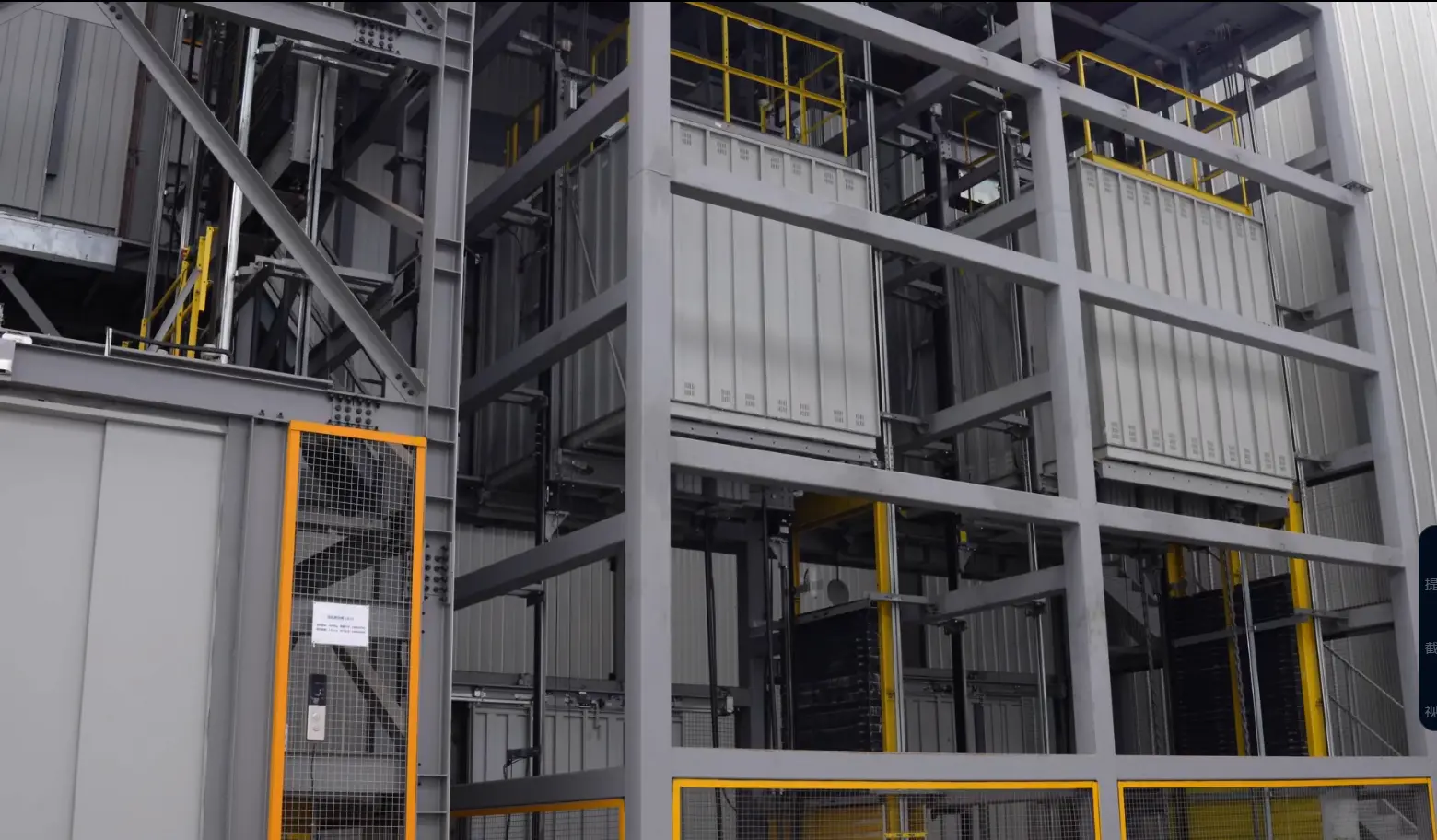

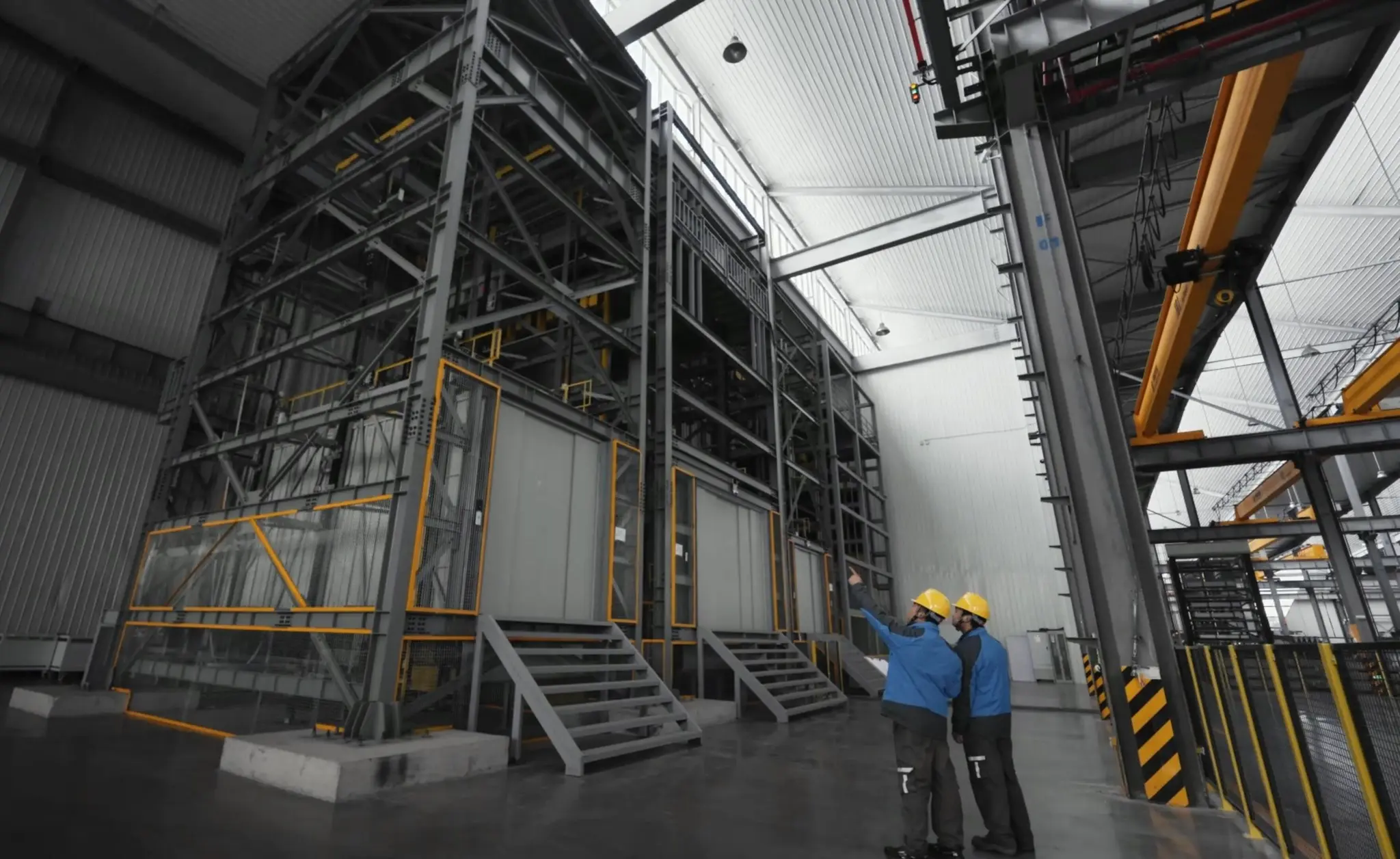

10t heavy-duty goods elevator
