Three Numbers That Determine the Birth of an Elevator: Overhead Height, Pit Depth, and Hoistway Dimensions — Why We Can’t Provide a Quote Without Them

When you inquire about an elevator for your project, the first questions we ask often involve three technical parameters: overhead height, pit depth, and hoistway dimensions. You might wonder, "I just need a rough price—why such detailed information?"

The answer is simple: It's essential. This isn't just about cost—it's about safety and feasibility. As a SURAPID engineer, let me explain why.

These three dimensions define the elevator's "living space."

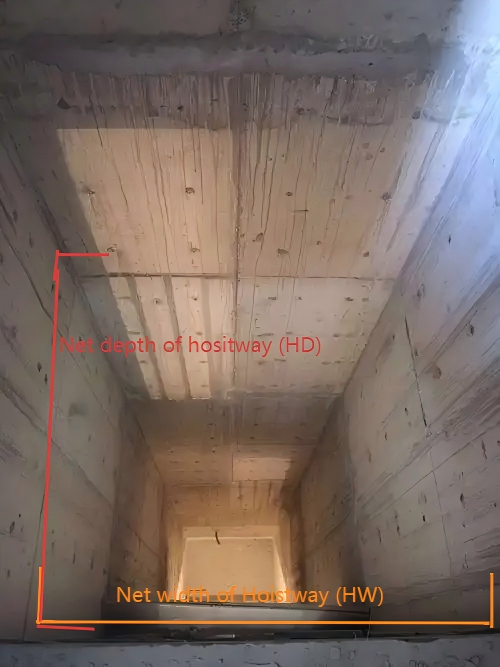

1. Hoistway Dimensions: The Elevator's Structural Frame

   • What do they determine? The width and depth of the hoistway dictate the size of the elevator car and the type of door system (e.g., center-opening or single-side opening). It's like furnishing a room—you need to know its length and width first.

   • What if the data is inaccurate? If the hoistway is too narrow, the car we design might not fit. If the door opening position is misaligned, the elevator won't connect properly with the floor. The result? Costly structural modifications or an elevator that's cramped and inefficient.




2. Overhead Height: The Elevator's "Breathing Space"

   • What does it determine? This is the vertical distance from the top of the car to the roof of the hoistway when the elevator reaches the top floor. It affects the elevator's speed and safety maintenance space. A greater overhead height allows for more complex traction systems and safer buffer distances.

   • What if it's insufficient? An inadequate overhead height is like forcing a tall person into a low-ceilinged room—they can't stand straight. This means:

     • We may be unable to install a traction machine that meets safety standards.

     • Technicians won't have enough space for safe maintenance and repairs.

     • Emergency rescue operations could be delayed due to restricted access.

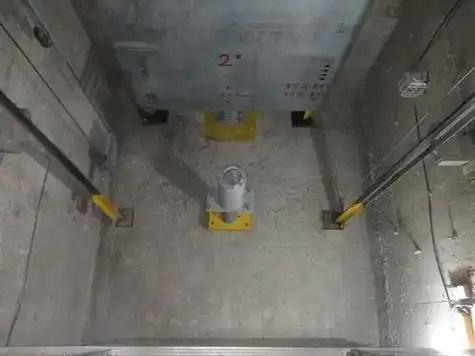

3. Pit Depth: The Elevator's Safety Foundation

   • What does it determine? The pit is the recessed space at the bottom of the hoistway, housing the buffer—the final physical safety mechanism. If the elevator overshoots the lowest floor, the buffer absorbs the impact, protecting passengers and equipment.

   • What if it's too shallow? Insufficient pit depth means we cannot install buffers with adequate travel distance. This is equivalent to a car driving without functional brakes—an absolute violation of safety codes. No responsible manufacturer would compromise on this.




Why Can't We Propose a Solution Without These Details?

Because an unsafe "solution" is no solution at all.

A quote provided without these core dimensions is nothing but an empty number. It might correspond to an elevator that is unsafe, non-compliant, or simply impossible to install. Once the project moves forward, hidden risks will emerge, leading to budget overruns, costly modifications, and significant delays.

Our insistence stems from our commitment to your safety.

At SURAPID, we believe a professional elevator solution begins with precise attention to every detail. We ask for these three key dimensions not to complicate the process, but to uphold our professionalism and dedication to safety. From the very beginning, we aim to build a safety barrier for you.

Provide us with accurate dimensions, and let SURAPID deliver a truly safe, reliable, and tailor-made elevator solution for your project.
