Jierun Series Hospital Elevator

Products Load :1000~2000 KG

Speed: 1.0~4.0m/s

Traction machine: Permanent magnet synchronous gearless traction machine

Operation panel: Integrated double-32-bit-microcomputer control

Door operator: Permanent magnet variable frequency door operator

Door protector: Light curtain

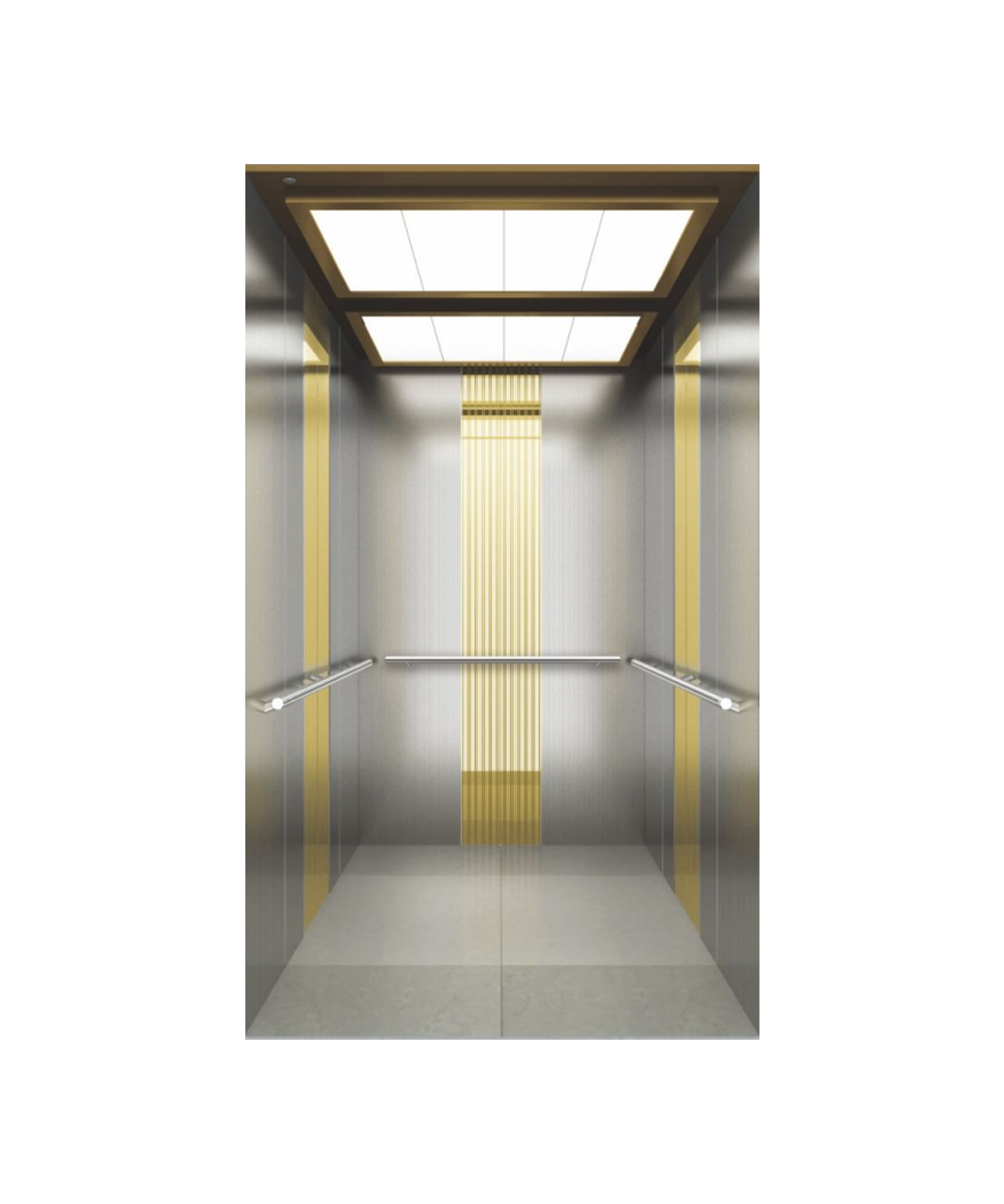

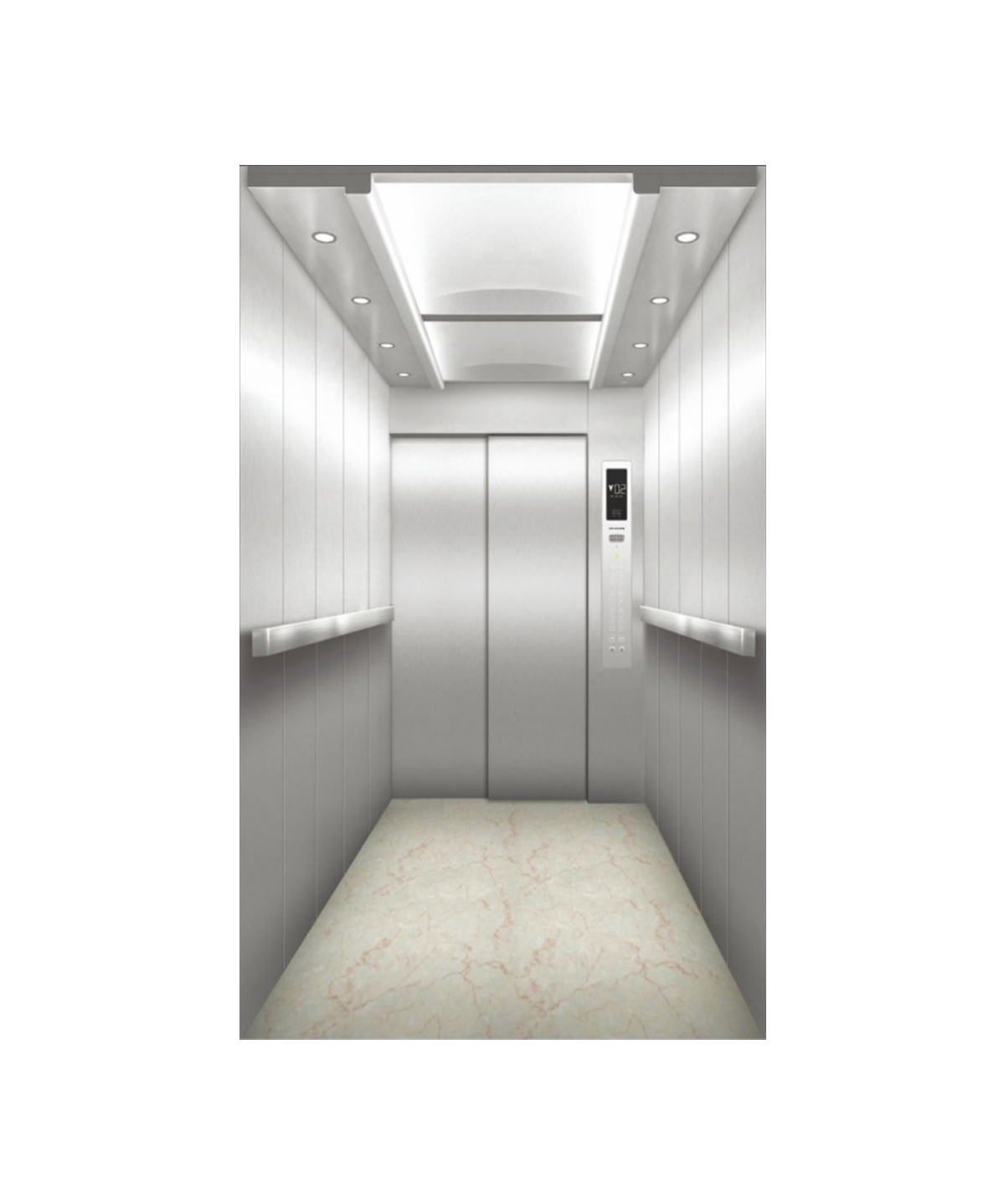

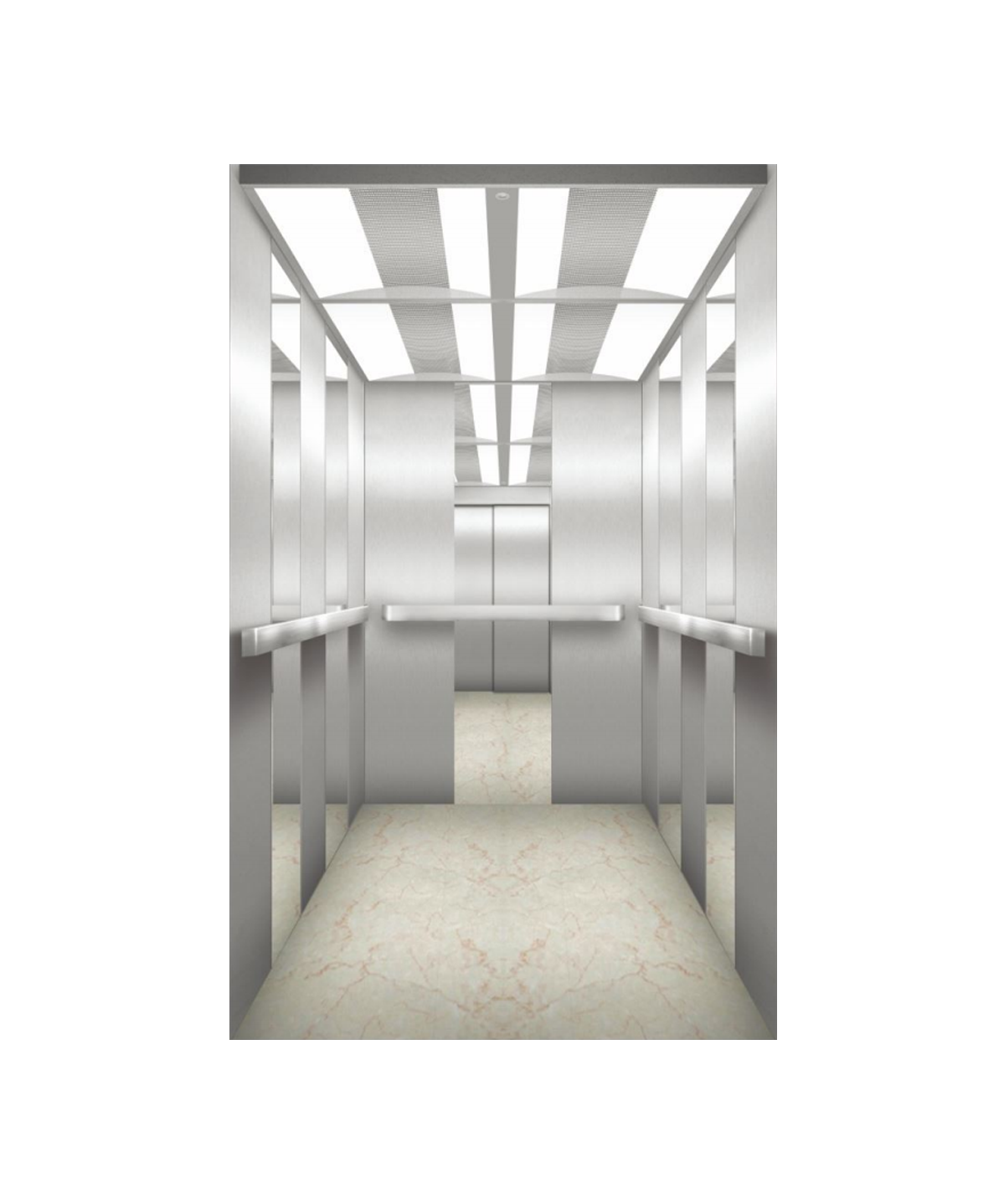

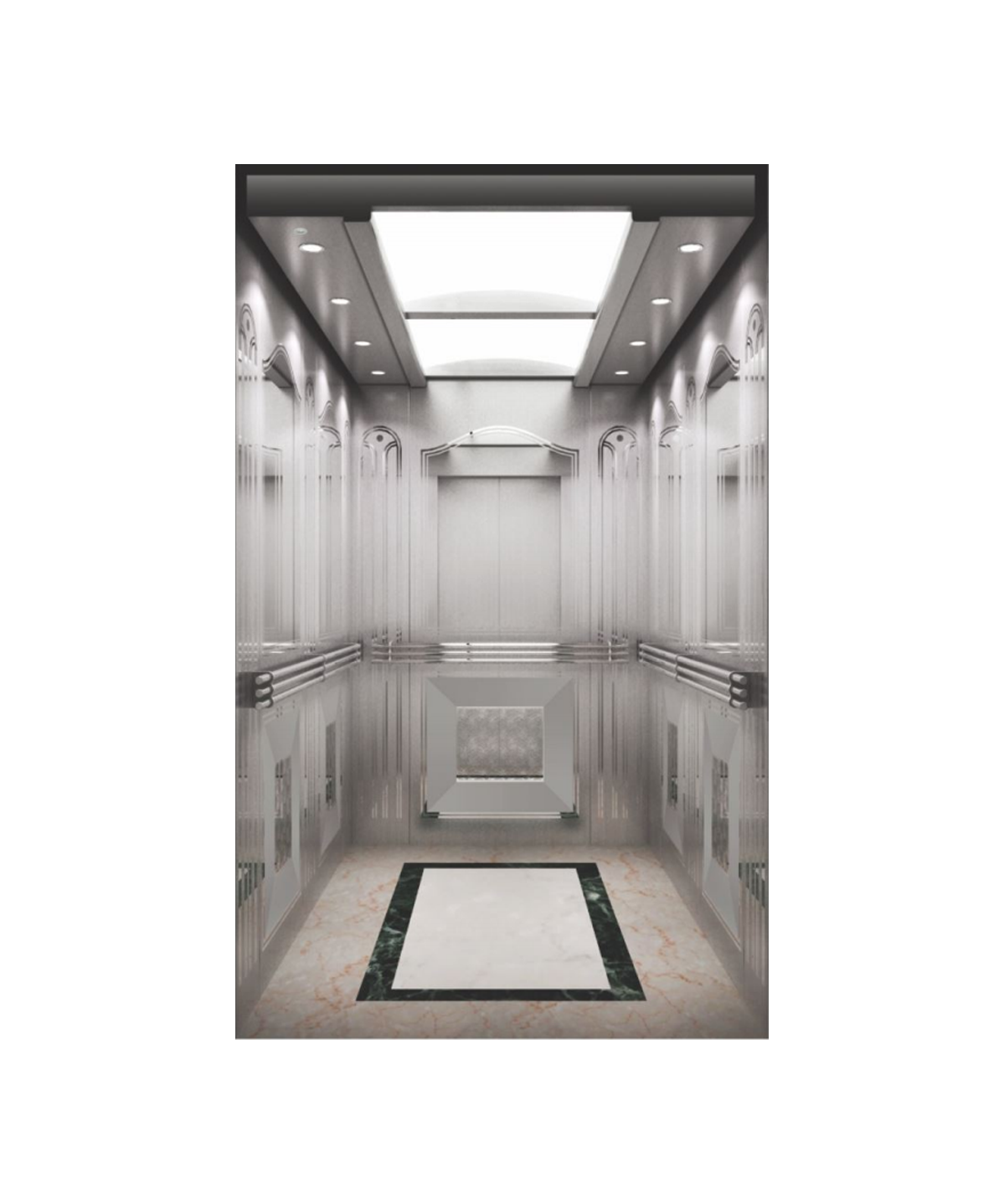

Standard decoration:

Ceiling : XTQ04-H12 spray coating steel plate(light grey)+acrylic+injection molding parts

Back/Side/Front Walls : Hairline-finish stainless steel

Floor： XTQ07-31 Yihua B1-7705(PVC)

Recommended application scenarios:

-For hospital beds, stretchers, and wheelchairs across wards, ER, OR, and ICUs.

-Serving operating theaters, ICUs, and emergency rooms for sterile and urgent transfers.

-Moving patients and sensitive materials (specimens, medicines) in high-traffic areas.

-Supporting wheelchair access in nursing homes and rehabilitation centers.

-Transporting clean supplies and waste management carts between sterile zones.

SURAPID Hospital Medical Elevator Technical Features & FAQ Specifications

Q1: How does the system prioritize patient transport during peak hospital traffic hours?

A: The system features a Dedicated Medical Priority Service mode. When activated by medical staff, the elevator bypasses routine hall calls to ensure that the patient inside the cabin is transported directly to the destination floor without additional stops, maximizing life-saving efficiency.

Q2: Are there specific technical provisions for hygiene and airborne contamination control in the cabin?

A: Yes, the cabin integrates an Independent Air Purification & Circulation System. It features automatic condensed water atomization, water-level protection limits, and dedicated air filtration to continuously regulate temperature, humidity, and airflow velocity, maintaining a clean-room level environment inside the car.

Q3: Does the controller support "Independent Service" to prevent unauthorized floor access during sensitive operations?

A: Yes, medical staff can enable Independent Service Mode to lock out all external floor calls. This prevents external interference or unauthorized passenger boarding, ensuring complete cabin privacy and operational exclusivity during the transport of critical patients or sensitive medical supplies.

Hospital Elevator Civil Engineering Parameter Reference Table

SURAPID Hospital Elevator (Machine Room Type)

Load (KG)	Speed (m/s)	Cabin size (WDH)	Door size (W*H)	Shaft size(W*D)	Pit Depth (mm)	Overhead (mm)	Rail Reaction & Machine Bearing Force (KN)
1000	1.0/1.5/1.75	1100x2200x2100 (Lat) 1100x2100x2100 (Cen)	900x2100 (Lat) 900x2100 (Cen)	2100x2650 (Lat) 2100x2400 (Cen)	1500/1600/1700	4500/4600/4700	RR=0, R1=31, R2=104, R3=84, R4=60, R5=53, H=13.1
1150	1.0/1.5/1.75	1200x2200x2100 (Lat) 1200x2100x2100 (Cen)	1000x2100 (Lat) 1000x2100 (Cen)	2200x2750 (Lat) 2200x2400 (Cen)	1500/1600/1700	4600/4700/4800	RR=0, R1=31, R2=104, R3=84, R4=60, R5=53, H=13.1
1350	1.0/1.5/1.75	1300x2300x2100 (Lat) 1300x2100x2100 (Cen)	1100x2100 (Lat) 1100x2100 (Cen)	2300x2850 (Lat) 2300x2600 (Cen)	1500/1600/1700	4600/4700/4800	RR=0, R1=31, R2=104, R3=84, R4=60, R5=53, H=13.1
1600	1.0/1.5/1.75	1400x2400x2300 (Lat) 1400x2100x2300 (Cen)	1200x2100 (Lat) 1200x2100 (Cen)	2400x2950 (Lat) 2400x2500 (Cen)	1500/1600/1700	4600/4700/4800	RR=0, R1=31, R2=104, R3=84, R4=60, R5=53, H=13.1

(Lat) = Lateral Opening, (Cen) = Center Opening. MR series uses OPS for lateral opening. Reaction forces are identical across all speeds for the same load.

SURAPID Hospital Elevator (Machine Room Less Type)

Load (KG)	Speed (m/s)	Cabin size (WDH)	Door size (W*H)	Shaft size(W*D)	Pit Depth (mm)	Overhead (mm)	Rail Reaction & Machine Bearing Force (KN)
1350	1.0/1.5/1.75	1300x2300x2400	1100x2100 (Lat) 1100x2100 (Cen)	2300x2850 (Lat) 2500x2700 (Cen)	1500/1600/1700	Lat: 4700 / Cen: 4600 Lat: 4850 / Cen: 4800 Lat: 4900 / Cen: 4850	Lat: OPS=44, RR=44, R1=78, R2=124, R3=91, R4=48, R5=20, H=20 Cen: OPS=44, RR=0, R1=44, R2=78, R3=124, R4=91, R5=48, H=20
1600	1.0/1.5/1.75	1400x2400x2400	1200x2100 (Lat) 1200x2100 (Cen)	2400x2950 (Lat) 2500x2800 (Cen)	1500/1600/1700	Lat: 4700 / Cen: 4600 Lat: 4850 / Cen: 4800 Lat: 4900 / Cen: 4850	Lat: OPS=44, RR=44, R1=78, R2=124, R3=91, R4=48, R5=20, H=20 Cen: OPS=44, RR=0, R1=44, R2=78, R3=124, R4=91, R5=48, H=20

(Lat) = Lateral Opening, (Cen) = Center Opening. MRL series uses OPS for lateral opening. Reaction forces are identical across all speeds for the same load.


• Large space for easy access(The design of wide elevator doors and deep carriages enables smooth entry and exit for hospital beds and medical equipments)

• Emergency call,VIP treatment (Passengers can press the button at a lower height to ask for help in case of emergency issues)

• Personalized design for a warm and comfortable experience.

• Interference-resistant design to eliminate potential hazards.
